Rendering of bookcase wall in the reading room.

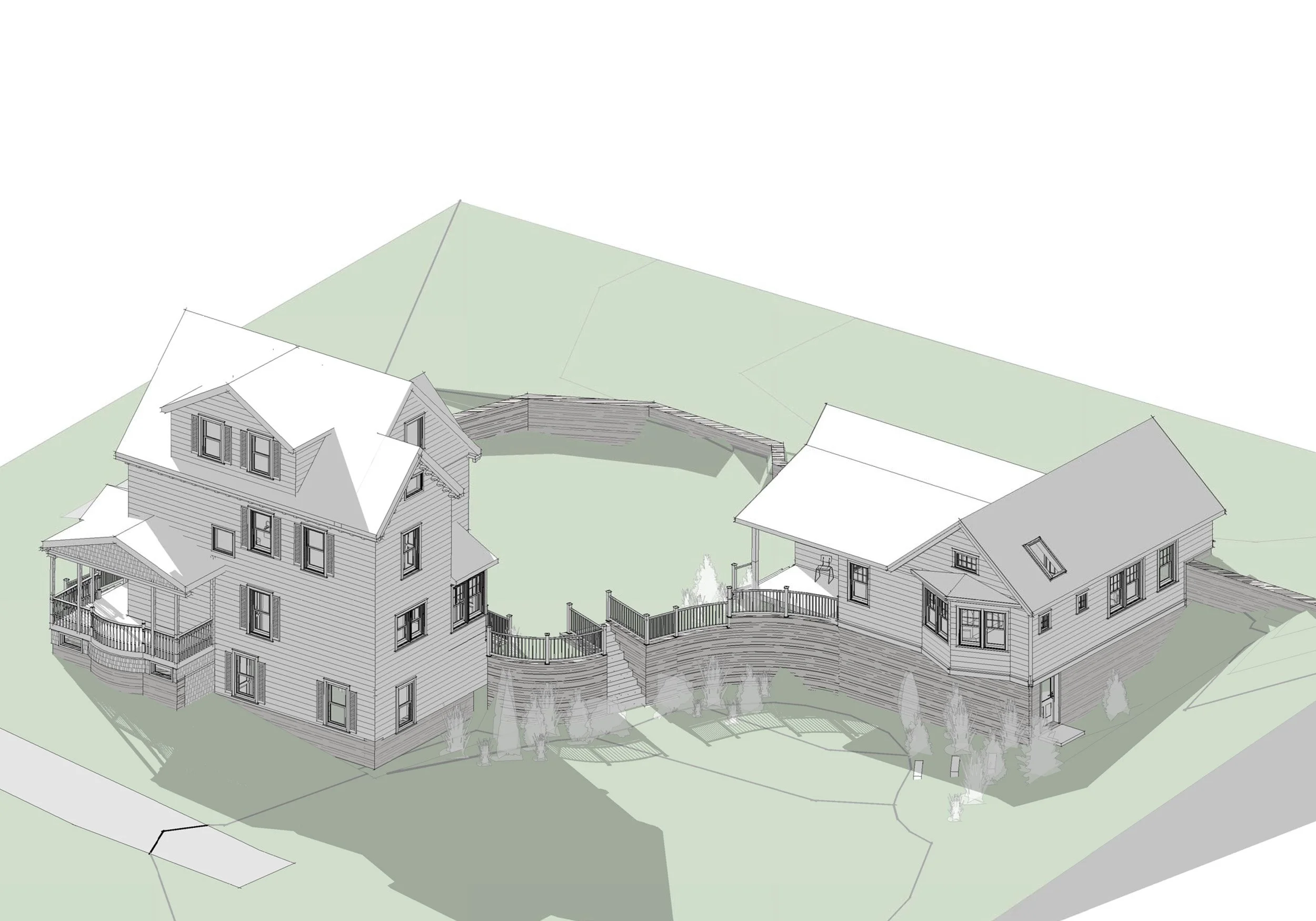

Massing overview of existing and proposed.

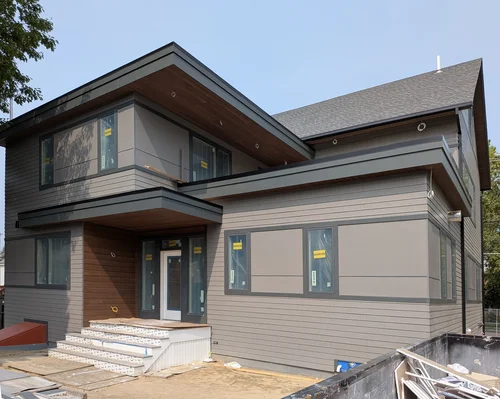

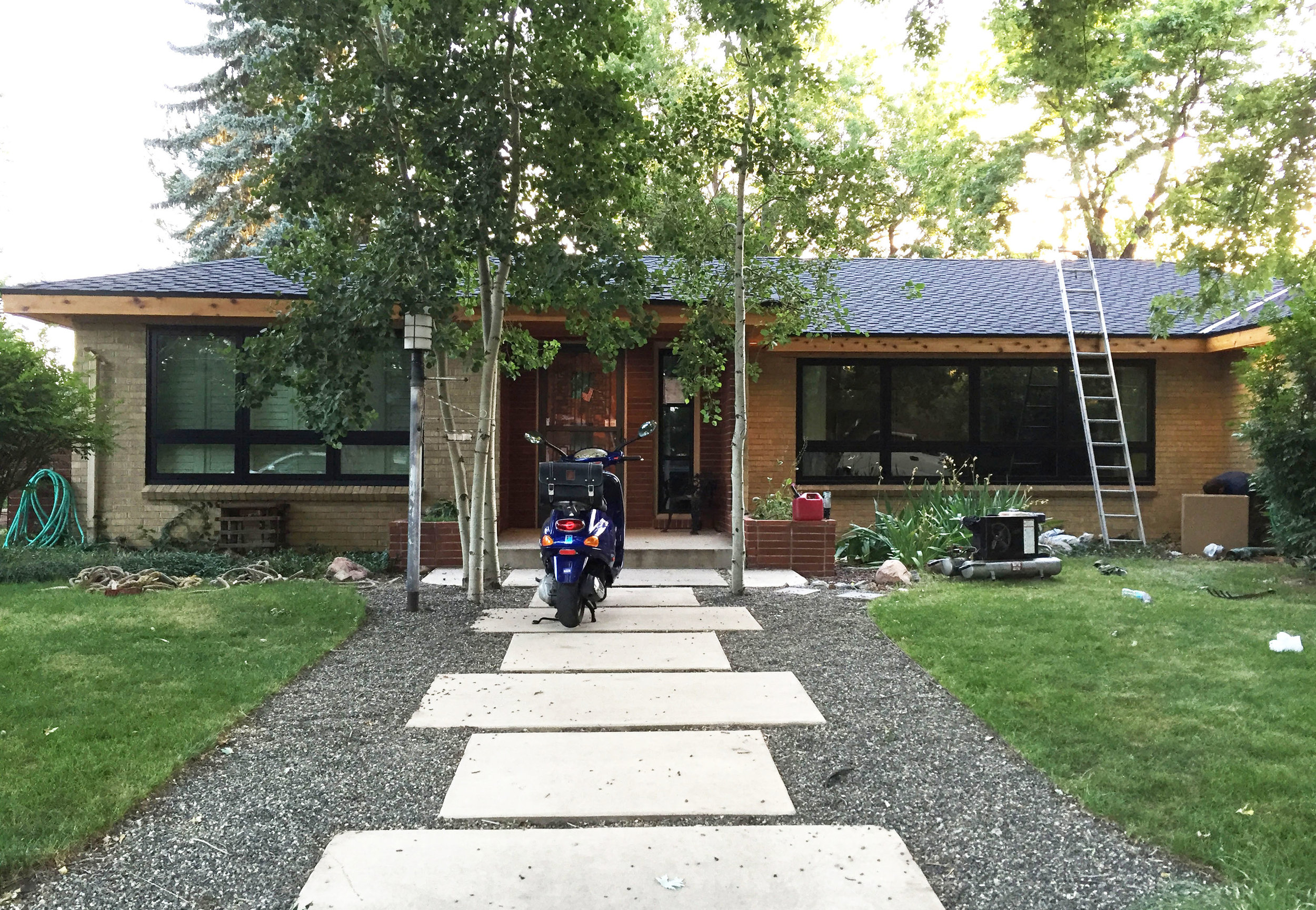

Construction progress.

Window seat progress.

Architectural plans.

Framing plans and technical sections.

Site plan.

Schematic landscape plan.

Project team meeting.

Floor plans show extensive renovation of both first floor (left) and basement (right) with an open, connecting stair.

The basement design calls for the excavation of nearly the entire space including new structural underpinning of the foundation. This will allow for a minimum of 8’ ceiling height in the finished space.

Exterior elevations show minor modifications proposed for Unit 1. Units 2 and 3 are to remain unchanged.

Concept sketches show the chain of living areas spilling out into the back yard at level 1 and connected at the basement level.

Construction progress photo - before final painting

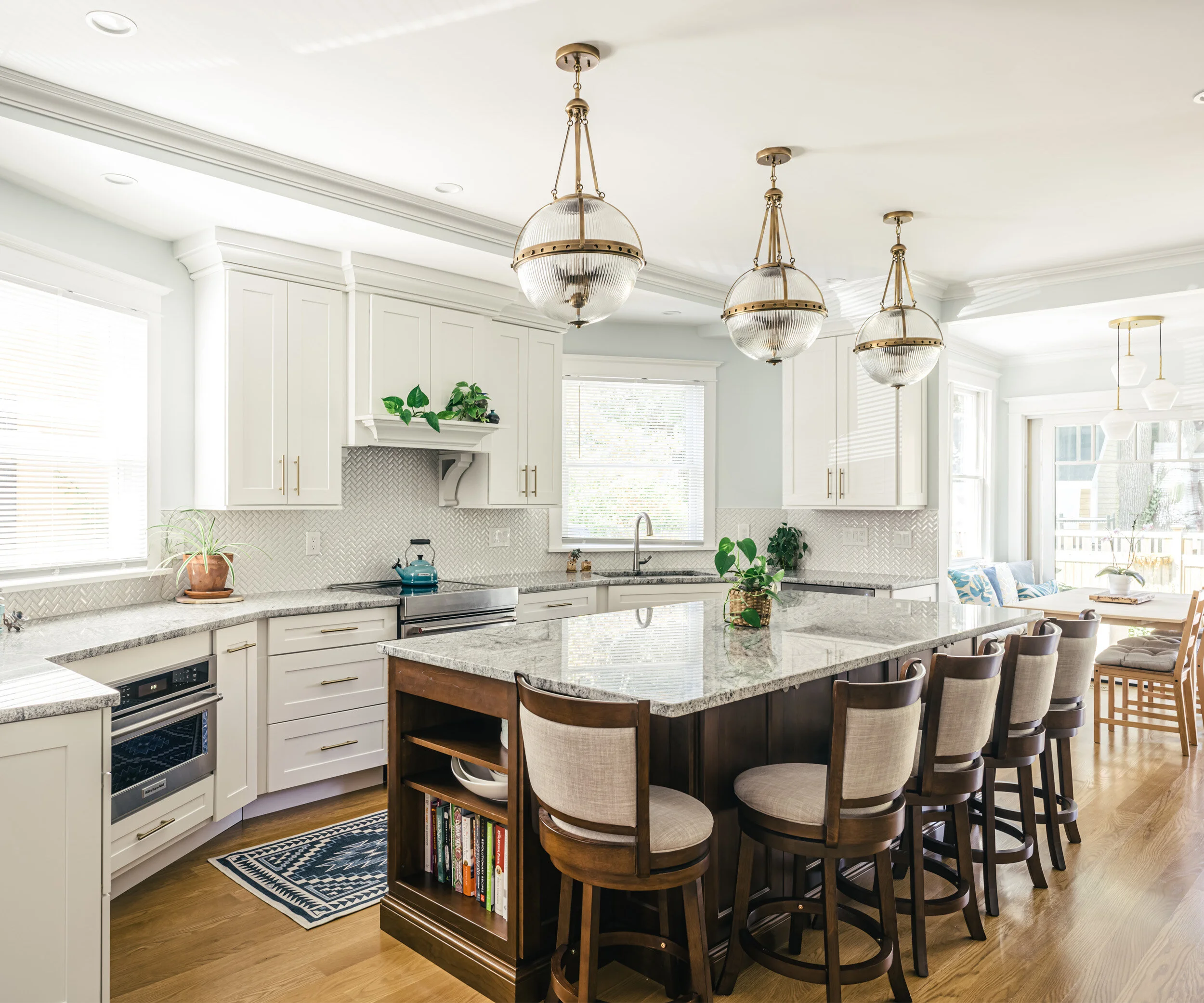

Kitchen photo - the kitchen design offered a new connection to the back yard and deck. It was previously segmented into multiple utility spaces and a stair.

New wall opening enables a comfortable dining to kitchen connection. Living space feels larger with lighter colors and re-use of original decorative ceilings.

Original features such as built-ins and decorative ceilings refreshed.

Floor plans show how strategic removal of walls transformed the flow and functionality of the space.

Schematic diagrams of the house evolution show how strategic removal of building masses can create design opportunity.

An Ipe deck with cable railings ensures landscape connectivity.

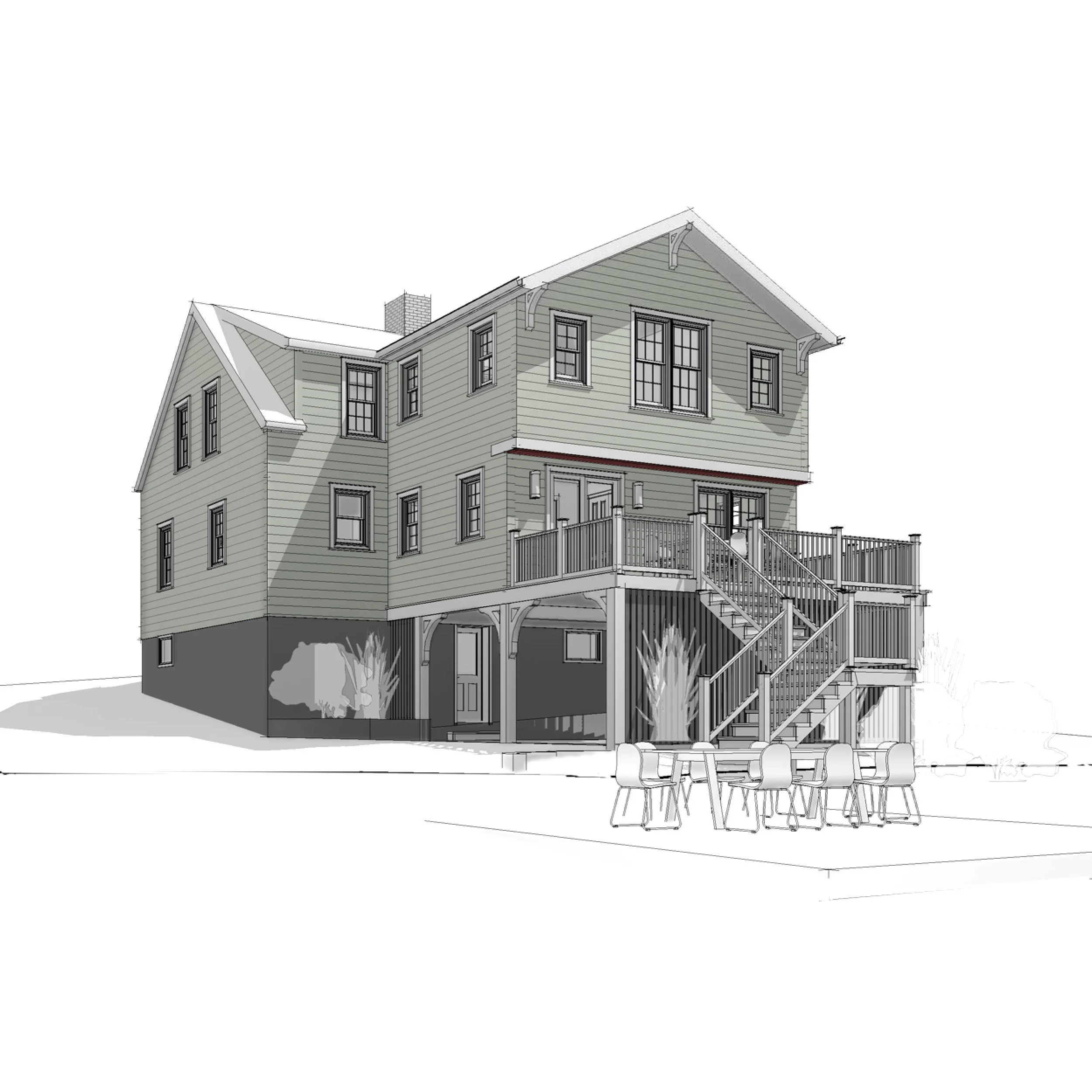

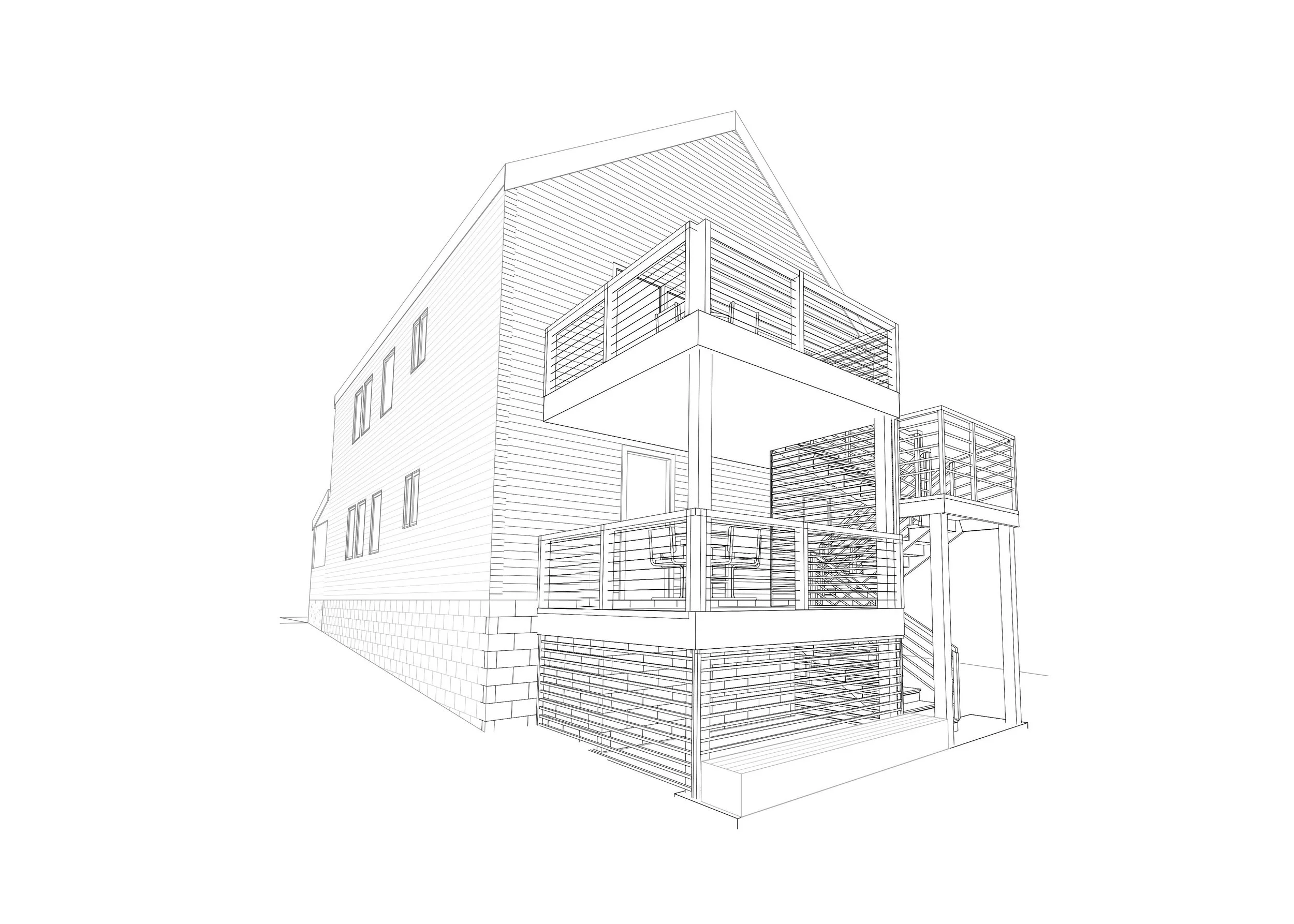

Schematic perspective view of deck shows solution that accommodates a two unit house.

Bathroom space was dramatically improved by a new vanity cabinet niche, recessed lighting, upgraded finishes and tile work.

Original stone house from 1874.

Kitchen progress photo.

Newly exposed stone wall and enlarged opening to dining room.

Existing floor plans show the heavy, thick limestone walls.

Proposed floor plans highlight two major additions proposed, kitchen and master bathroom.

Master bath addition progress.

Roof plan and axon views illustrate additions in 3D.

Kitchen plan details and perspectives.

Interior kitchen elevations were carefully composed to allow seamless connection with the historic house character.

Kitchen construction progress - expanded view to garden and exposed stone wall.

Project team charrette notes show how priorities were mapped at early stages.

Project team charrette diagram illustrates how all kitchen expansion ideas were initially considered. Option B and D were chosen.

Existing historic diagram shows the evolution of the house over the past 150 years.

Hill country context and owners out for a hike.

Historic photo. (Yep, that’s a guy on a horse with a shotgun.)

Light-filled studio space - a large shed dormer enabled stair access to code and increased useable living space.

Photo showing office space with light and views.

A short hallway leads to a bedroom, bathroom and large closet access.

Reclaimed wood wall from original attic subfloor.

Floor plan and elevation/section drawings show the design intent.

Bathroom photos.

Stair detail showing custom stained maple treads and risers to match Armstrong pre-finished maple floor.

Unused attic before construction - original T&G fir subfloor was saved and refinished for use in master bedroom wood wall.

Construction photo looking from the studio, through the bathroom and closet, into the bedroom.

Construction progress showing framing and spray foam insulation.

Design-build sketches.

The main living space was differentiated by material and size.

The design approach split the house into three discreet volumes in order to fit the program into site setbacks.

The simplicity of the composition allows the house to have a strong presence from the street.

Exterior elevations show the “connector” pieces as differentiated by form (flat roof) and material selection (stone).

Side view showing master bedroom volume connecting to the main living space.

Floor plans - first and second levels.

Design intent was to reference the New England context while brightening the space with a rich, cedar stain color.

Alternative door patterns explored.

Custom made cedar doors before staining.

Fabrication details. The front is intended to be simple verticals while the back of the door reinforces the structure with diagonal bracing.

New windows, electrical service, red cedar roof shingles and exterior paint refreshed the look and improved function.

Detail showing the overlapping of materials.

The barn sits within a context of other New England style structures.

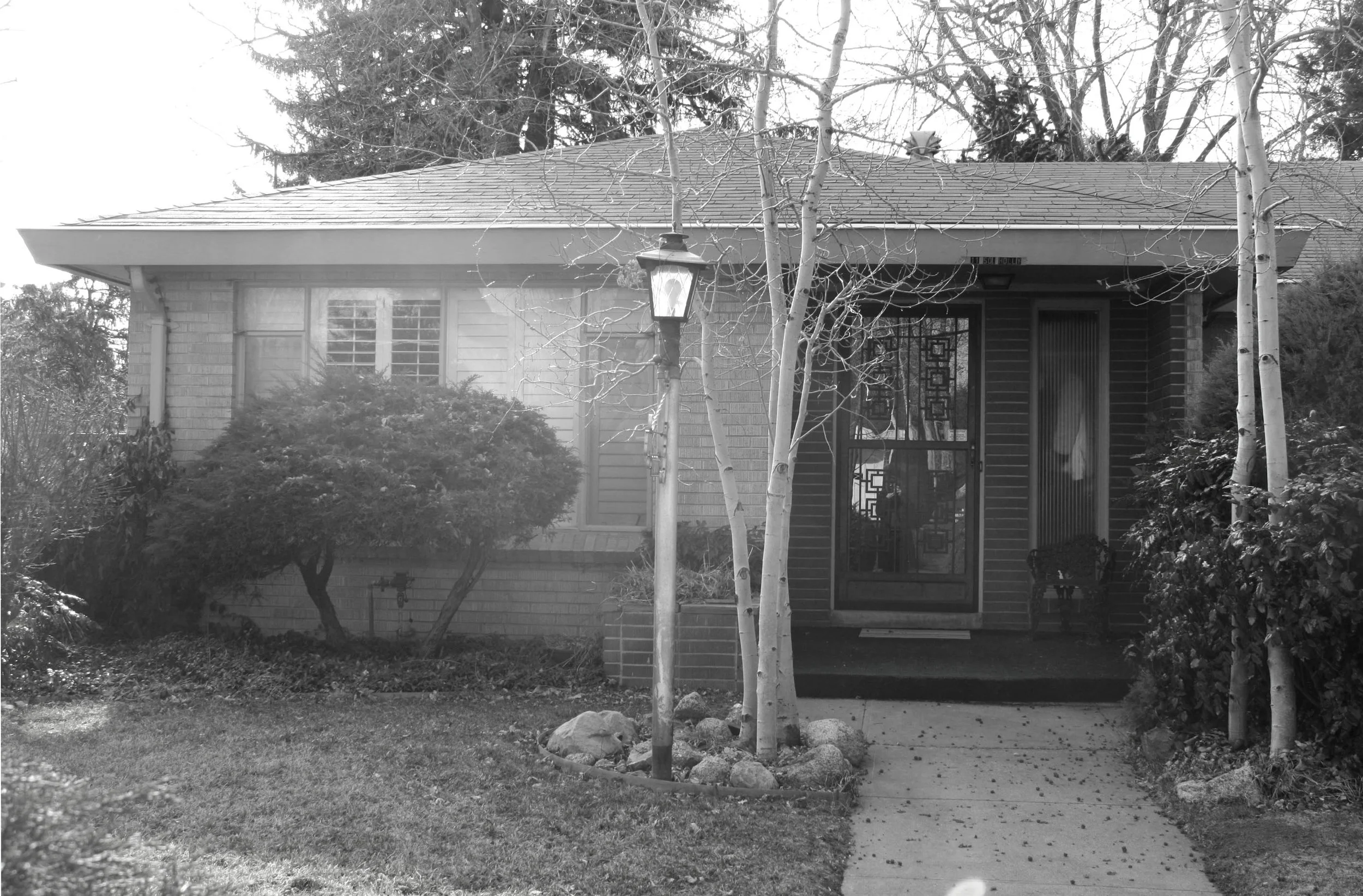

The structure before renovation.

Front of house - the addition design mirrors the gable roof face on the original house.

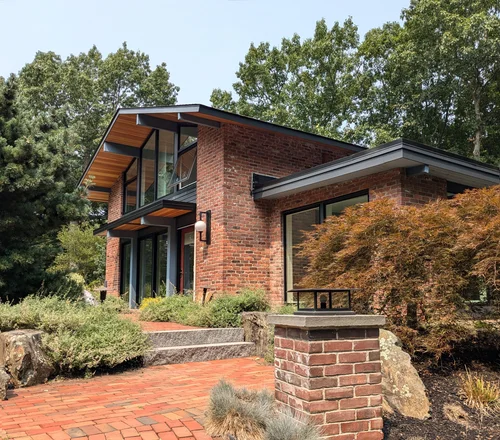

Entry view - A brick base ties in visually to the mainly red brick house.

Rear house view - shows how the project nestles into the canopied context and rolling hills of Pennsylvania.

Construction progress photos.

Phase 1 - Renovation - includes three bathroom remodels, new laundry and mudroom room on the main level and a kitchen remodel that re-shuffled existing cabinets and upgraded finishes.

Phase 2 - Addition - includes a new garage entering at grade, an indoor stair connection to the main level and a large loft space above the garage with vaulted ceilings.

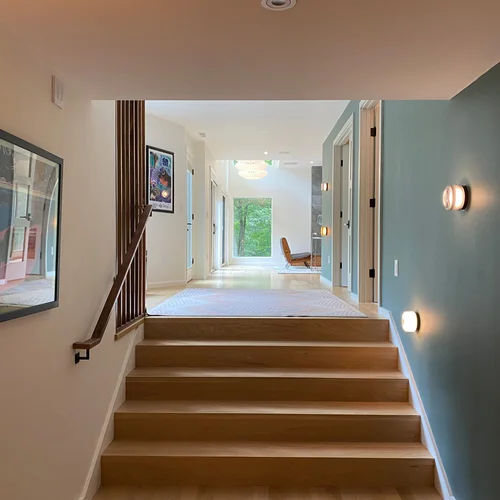

Building sections show stair connections to multiple levels.

Kitchen progress photo.

Interior photos.

Design Sketches show how various options were explored.

Quick rendering visualizations helped convey the cabinet painting and re-shuffle idea to the project team. Other finish upgrades included staining the existing oak floors, wall repainting and tile accents.

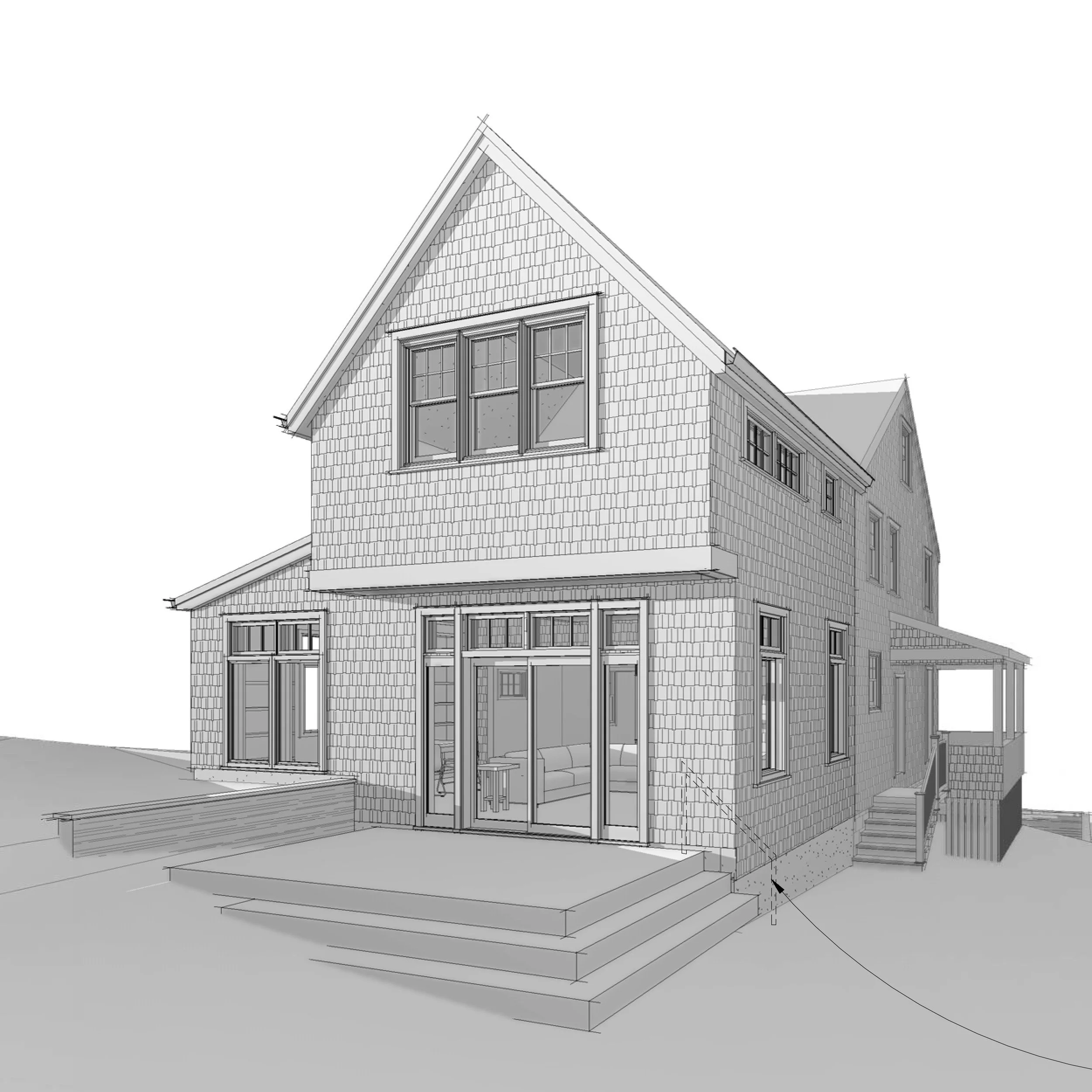

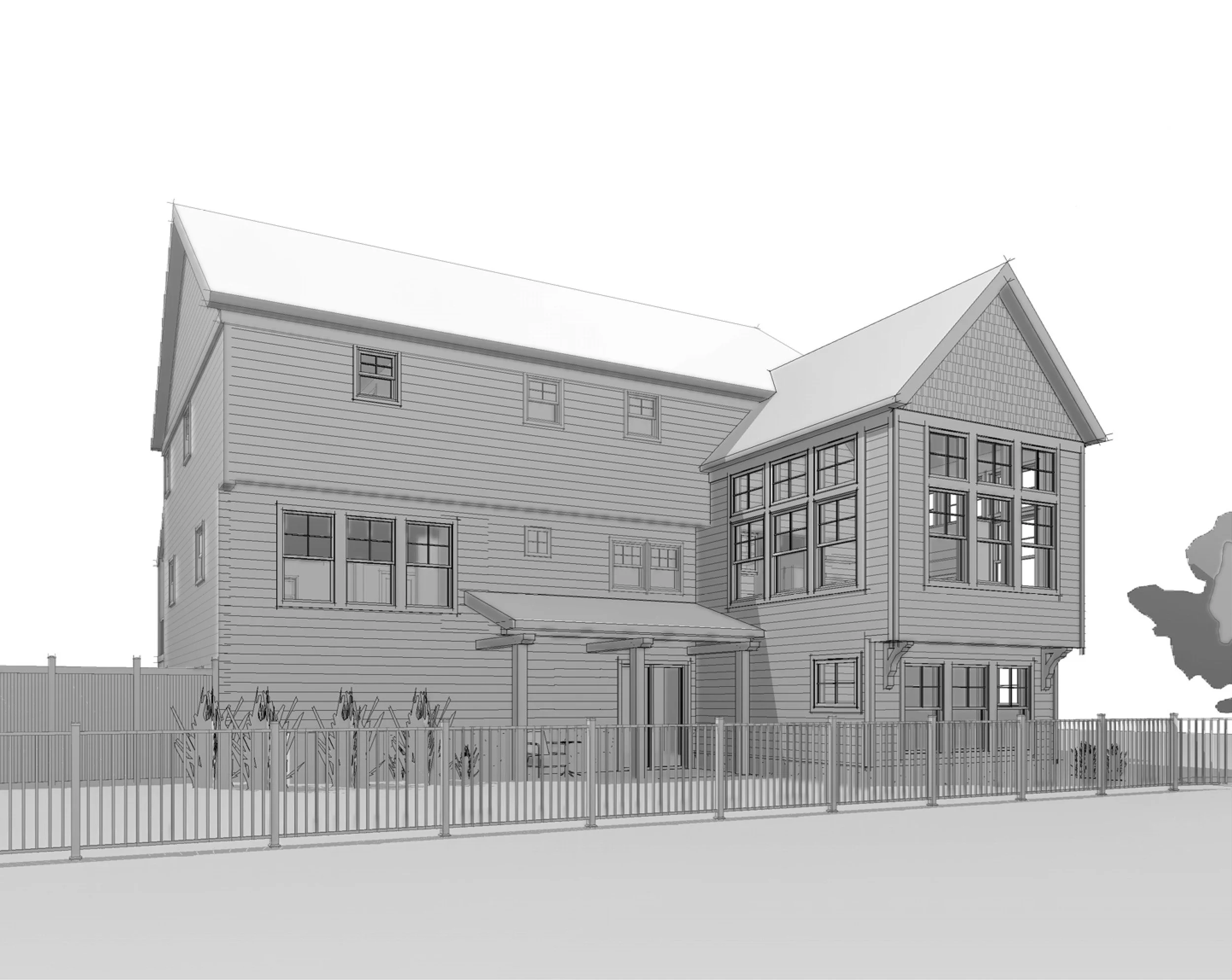

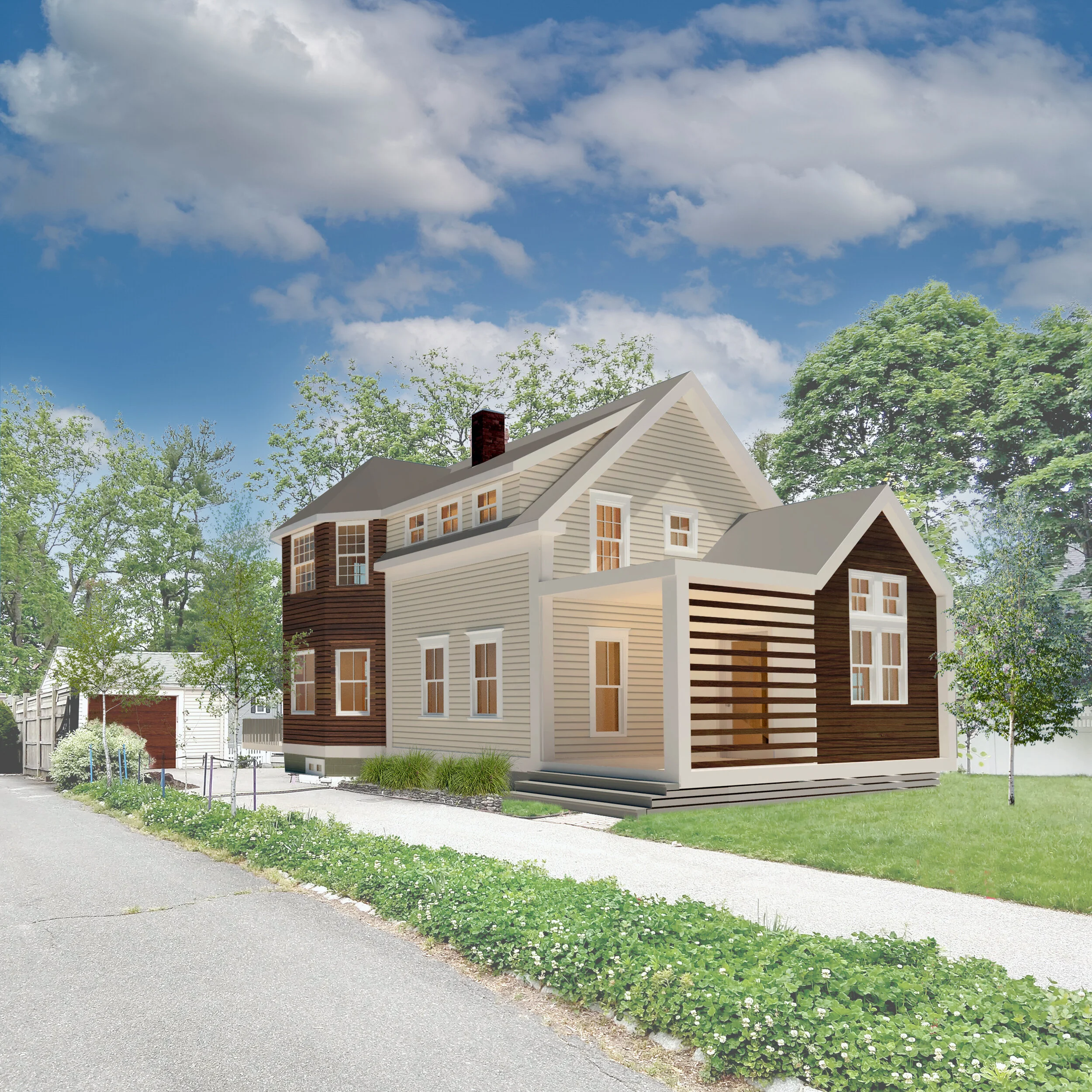

Exterior rendering used to communicate design ideas to client and contractor.
